Clear Transparent One Station Acrylic Glove Box With Pressure Gauge for Battery Research

FOB Reference Price:Get Latest Price
US $300-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Other
Brand Name:
TORUN
Model Number:
VGB-2
Place of Origin:
Jiangsu, China (Mainland)
Product name:
Transparent Acrylic Glove Box for Battery Research
Main chamber:
L900 x W500 x H500 mm
Vacuum antechamber:
L240 x W240 x H240 mm
Material:
Acrylic
Power:
Electronic
Certificate:
ISO/CE/FCC/3C/ROHS
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging in wooden case (or as requested) for Clear Transparent One Station Acrylic Glove Box With Pressure Gauge for Battery Research
Port
FOB Shanghai
Lead Time :
Shipped in 30 days after payment
Glove Box Show

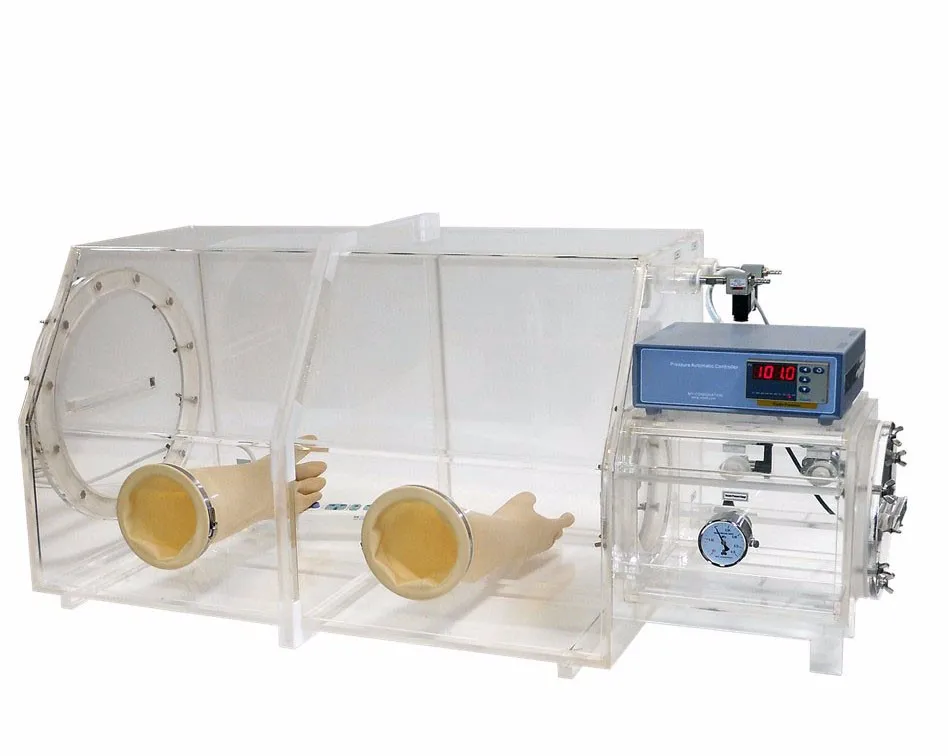

 Clear Transparent One Station Acrylic Glove Box With Pressure Gauge for Battery Research
Description
VGB-2 GLOVE BOX TECHNICAL DATA:
Case Material:
Made of 6mm Acrylic material with acrylic reinforcing rib
Main Chamber Size:
900 L x500 W x500 H mm

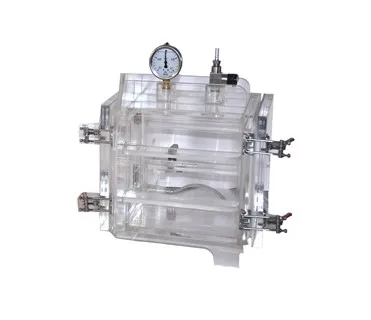

Air-lock Chamber Size:
240mm(L) x 240mm(W) x 240mm(H)

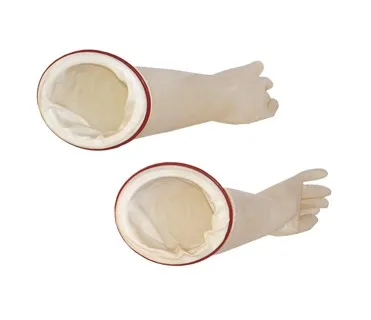

Gloves:
Latex Glove (Standard)
Glove port's size:
151mm(D)
Main Chamber Door External Size:
400mm(D)
Main Chamber Door Internal Size:
340mm(D)
Electrical feedthrough:
220V 50Hz / 110V 60Hz
Warranty:
One year limited warranty with lifetime support
Net Weight:
25kg
 OPTION VARIOUS SIZE FOR YOUR CHOICE
Main Chamber Size
(L x D x H mm)
Air-lock Chamber Size
(L x D x H mm)
Main Chamber Vacuum Function
Model
A Type
B Type
C Type
A Type
B Type
C Type
A Type
B Type
C Type
AGB-1
300*400*500
No
240*240*240
No
No
-0.1Mpa
AGB-2
700*450*550
No
240*240*240
No
No
-0.1Mpa
AGB-3
800*550*600
No
240*240*240
No
No
-0.1Mpa
AGB-4
900*500*500
No
240*240*240
No
No
-0.1Mpa
AGB-5
900*600*700
No
240*240*240
No
No
-0.1Mpa
AGB-6
1000*750*700
No
240*240*240
No
No
-0.1Mpa
AGB-7
1100*650*600
No
240*240*240
No
No
-0.1Mpa
AGB-8
1200*800*700
No
240*240*240
No
No
-0.1Mpa

 A-- Without airlock chamber /Radiaton resistant,Isolated and Dustproof /unable to be vacuumized. Thickness:6-10mm

 B-- With airlock chamber /Anaerobic, Anhydrous /Transit room can be vacuumized.Thickness:6-10mm

C-- With airlock chamber /Anaerobic, Anhydrous /Main box and transit room all can be vacuumized.Thickness:20-40mm


OPTION SPARE PARTS AND SENSORS

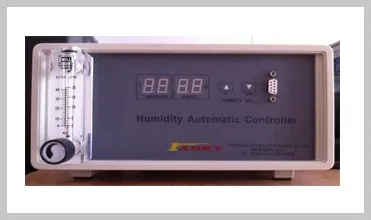

Option Automatic Humidity Controller

Specification:Automatic adjustment and control the humidity inside the chamber. The humidity value can be setted according to customers requirements.

Humidity Controller Range:1%RH~ambient relative humidity

Gas Flowmeter: 1 Unit

Humidity Sensor:1 Unit

Solenoid Valves: 2 Units

Humidity recording function (Option):The controller has RS232 feedthrough, which could be connected with the computer for humidity recording function. (The CD software and cable is an option)

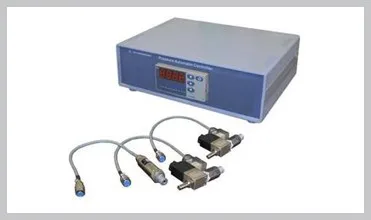

Option Automatic Pressure Controller

Specification:Automatic adjustment and control the pressure inside the chamber. The pressure value range can be setted according to customers requirements.

Suitable for :The glove box could not be vacuumed; Acrylic material glove box.

Pressure Sensor: 1 Unit

Solenoid Valves: 2 Units

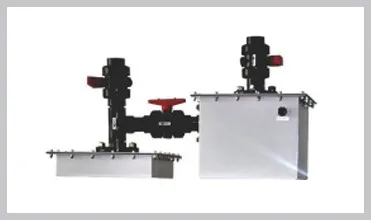

Option Hepa Filter System

Specification:Easily configurable closed- or open-loop system provides isolation for product protection or containment for environmental protection.

Function: Ideal for removing fine pharmaceutical powders, aerosols and most microbial contaminants.

HEPA Air Filters:Intake HEPA Air Filter, 99.97% 0.3µm.

                             Exhaust HEPA Air Filter 99.97%0.3µm.

Brushless DC motor: Brushless DC motor eliminates carbon contaminants, provides ultra-clean, high-static pressure operation.

Blower: 480CFM impeller blower module 120 VAC/60Hz, mounted on the second hepa filter.

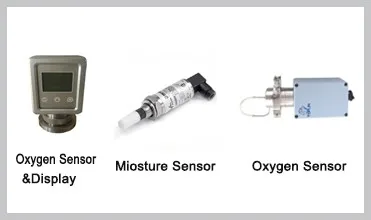

Option Sensors

Oxygen Sensor&Display:128×64 LCD display window, parameters can be set free and operation is easy.Display range: 1000ppm~20%;Without controlling function.

Miosture Sensor:Range 0-1000 ppm, has an accuracy of 0.1ppm. Without controlling function.

Oxygen Sensor:Range 0-1000 ppm, has an accuracy of 0.1ppm. Without controlling function.

Standard Glove Box

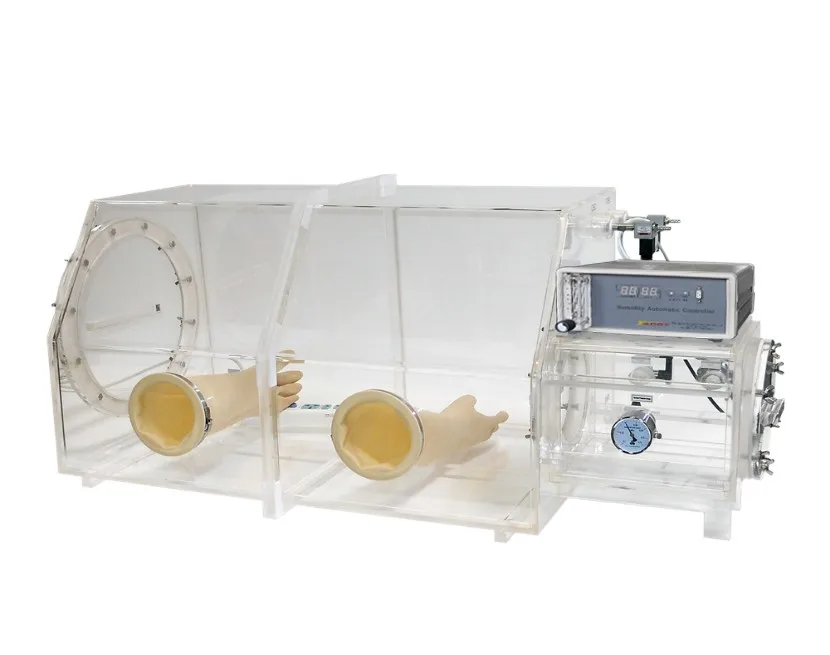

AGB-2C Acrylic Glove Box
With Automatic Humidity Controller


   AGB-2Y Acrylic Glove Box
   With Automatic Pressure                  Controller

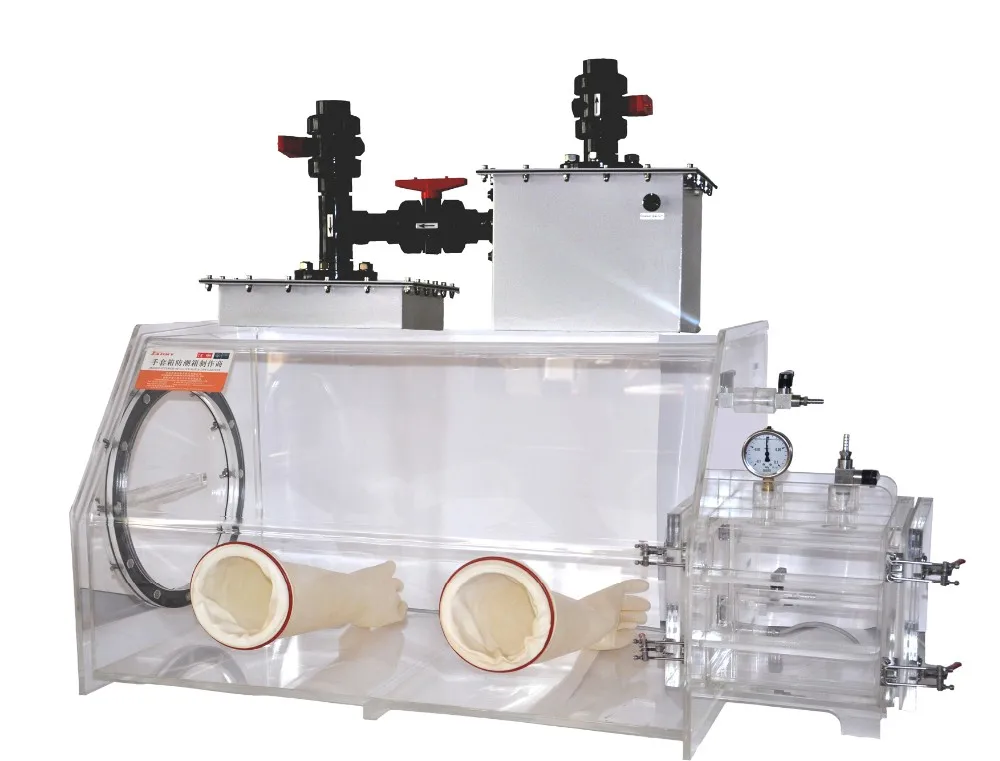

      AGB-2D Acrylic Glove Box
      With HEPA Filter System


Customized Glove Box

Vacuum Acrylic Storage Box

Customized Vacuum Acrylic                           Glove Box


Acrylic Glove Box WIth Cylinder-shape Airlock chamber
