Quick Details

  • Classification: Other
  • Brand Name: TORUN
  • Model Number: VGB-3
  • Place of Origin: Jiangsu, China (Mainland)
  • Product name: Stainless Steel Vacuum Glove Box for Laser Welding Research
  • Main chamber: L780 x W650 x H700 mm
  • Vacuum antechamber: 240D x 260L
  • Material: SUS304
  • Power: Electronic
  • Certificate: ISO/CE/FCC/3C/ROHS

Packaging & Delivery

Packaging Details Packaging in wooden case (or as requested) for New VGB-3 Stainless Steel -0.1Mpa Vacuum Glove Box with Butyl gloves for Laser Welding Research
Delivery Time Shipped in 30 days after payment

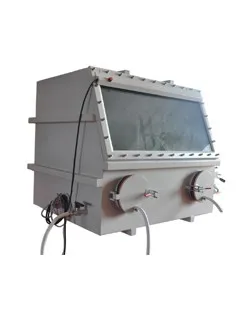

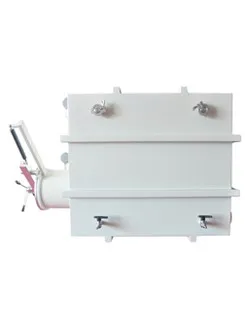

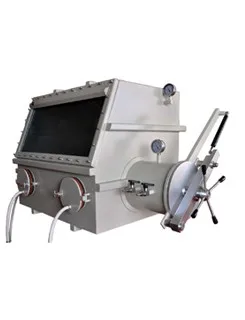

Glove Box Show

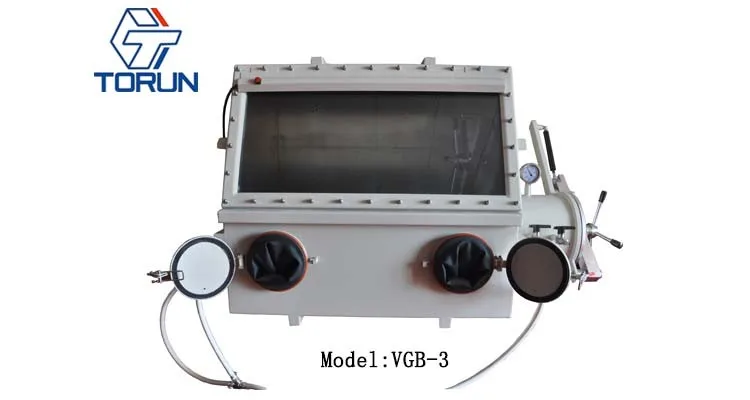

 New VGB-3 Stainless Steel -0.1Mpa Vacuum Glove Box with Butyl gloves for Laser Welding Research


Description
Glove Box Model:
VGB-1
VGB-3
VGB-4
Case Material:
SUS304 Stainless Steel
Main Chamber Size:
600W x 450D x 420 H mm
780W x 650D x 700 H mm
1120W x 740D x 900 H mm
Air-lock Size:
210 diameter x 260 length mm
240 diameter x 260 length mm
385 diameter x 435 length mm
Front Window Size:
500W x 165H mm
710W x 320H mm
1040W x 400H mm
Gloves:
Latex Glove (Standard)
Electrical Feedthrough:
220V 50Hz / 110V 60Hz
Lighting
Led light for energy saving
Warranty:
One year limited warranty with lifetime support
Net Weight:
60kg
140kg
200kg
Main Chamber Vacuum level
-0.1MPa
-0.1MPa
-0.1MPa
Air-lock Chamber Vacuum level
-0.1MPa
-0.1MPa
-0.1MPa

OPTION SPARE PARTS AND SENSORS

option automatic humidity controller

Specification:Automatic adjustment and control the humidity inside the chamber.

Humidity Controller Range:1%RH~ambient relative humidity

Humidity recording function (Option): Humidity recording function. (The CD software and cable is an option)

option automatic pressure controller

Specification:Automatic adjustment and control the pressure inside the chamber.

Suitable for :The glove box could not be vacuumed; Acrylic material glove box.


option hepa filter system

Specification:Easily configurable closed- or open-loop system provides isolation for product protection or containment for environmental protection.

Function: Ideal for removing fine pharmaceutical powders, aerosols and most microbial contaminants.

HEPA Air Filters:Intake HEPA Air Filter, 99.97% 0.3µm. Exhaust HEPA Air Filter 99.97%0.3µm.


Option Gas Purification System

Gas purification system: Long-term, continuing to maintain gas purity: H20 & O2 <1ppm.
Function: Automatic control system pressure/purging/purification/regeneration/alarm function,
Record system parameters/System condition monitoring/Password protection.

Option Sensors

Oxygen Sensor&Display:128×64 LCD display window, parameters can be set free and operation is easy.Display range: 1000ppm~20%;Without controlling function.
Miosture Sensor:Range 0-1000 ppm, has an accuracy of 0.1ppm. Without controlling function.
Oxygen Sensor:Range 0-1000 ppm, has an accuracy of 0.1ppm. Without controlling function.

Customized Glove Box Avaliable

For Example :

 1.Square Antechamber

2.Heatable Tray Antechamber

3. Solvent removal systems

Standard Glove Box

VGB-1

  VGB-3

  VGB-4


Related Glove Box

Glove Box with temperature Control

Glove Box with Solvents absorber system

Glove Box with openable front window


Company Profile


Changshu Tongrun Electronic Co.,Ltd, is founded in 2006, is a professional manufacturer of Glove Box & Dry Cabinet with integration of R&D, production and sales department. Company area is 9200 m2, Plant area 9200 m2, and would increase 7000 m2 on Plant area next year.

Company sales amount is more than 11 million dollars in 2016.

Package
Service

After-sales Service Procedure:
1. Email us or call us your problem.
2. We would reply you in 24hours, and at the same time the problems would be forwarded to technical department.
3. Our engineer would exclude the possibility and solve the problem in 48 hours
.

Contact

TORUN is a leading company which is specialized in providing Vacuum Glove Box, Acrylic Glove Box, Customized Glove Box, Gas Purification System, Dry Cabinet, Nitrogen Cabinet.

If there is anything you'd like to know,please contact us without hesitation.
