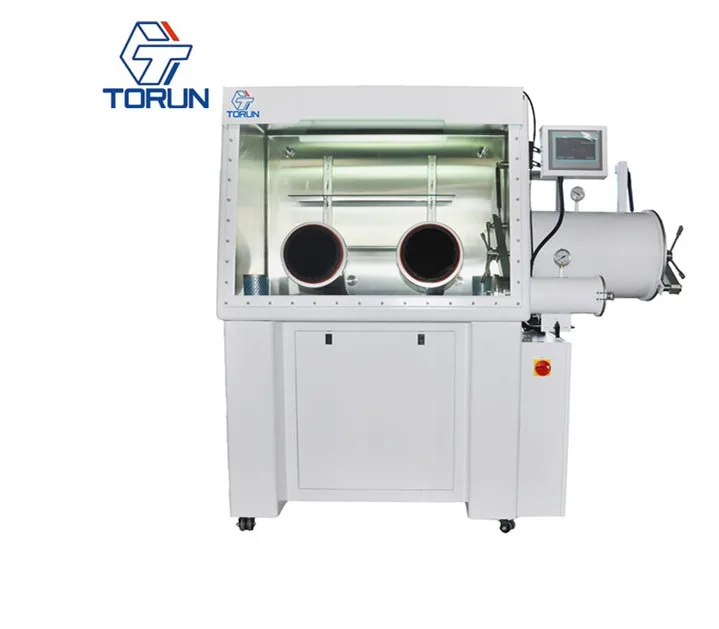

Stainless Steel Vacuum Lab research Glove Box With Purification System

FOB Reference Price:Get Latest Price
US $5,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Other
Brand Name:
TORUN
Model Number:
2GBS
Place of Origin:
Jiangsu, China (Mainland)
Main chamber:
L1220 x W760 x H900 mm
Large vacuum antechamber:
Diameter 385mm x length 600mm
Small vacuum antechamber:
Diameter 150mm x length 300mm
Material:
SUS304 (US 304, 1.4301)
Power:
Electronic
Leak rate:
0.001vol%/h
Moisture/oxygen concentration:
<1 ppm
Working gas:
Nitrogen, Argon or Helium
Shipping Weight:
200-800kg
Certificate:
ISO/CE/FCC/3C/ROHS
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging in wooden case (or as requested) for Stainless Steel Vacuum Lab research Glove Box With Purification System
Port
FOB Shanghai
Lead Time :
Shipped in 30 days after payment

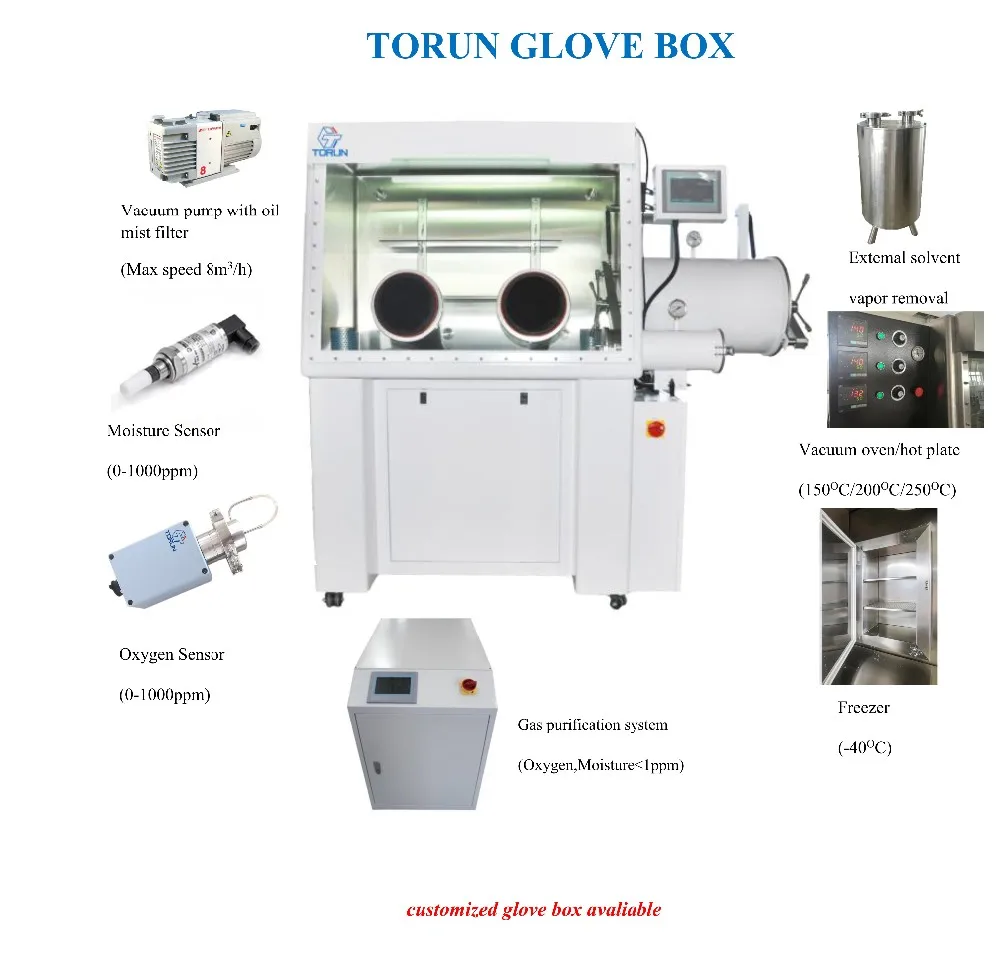

Glove Box Show
Description
GLOVE BOX TECHNICAL DATA:
Type of construction
Round corner on the box /Side panels bolted on the box body
Material
Stainless SUS 304
Lengths
1220/1500/1900mm
Depth
760mm
Height
900mm
Leak rate
0.001vol%/h
Outside surface
Coated, white
Window
Tempered glass/polycarbonate glass
Glove ports
Aluminum alloy /stainless steel / Polyoxymethylene polymer
Gloves
Butyl rubber/neoprene
Light
Fluorescent lamp
Feedthroughs
4 DN40KF flanges
Dust filter
HEPA H13 in/out,precision 0.3μm
Shelves
2 adjustable shelves
 ANTECHAMBER TECHNICAL DATA:
Type
Cylindrical
Material
Stainless steel
Dimension
Include two antechambers:
Large antechamber:385x600mm (D x L)
Small antechamber:150x300mm(D x L)
Outside Surface
Coated white
Leak Rate
10-5mar l/s
Sliding Tray
Stainless steel
Doors
Aluminum anodized thickness 10mm
Door Lock
Door closing mechanism with spindle handle for one hand operation
Pressure Gauge
Analog display
Vacuum/Refill Process
Automatic /Manual operation via hand valves
GAS PURIFICATION SYSTEM TECHNICAL DATA:
Operation Principle
Closed loop recirculation
Attainable Purity Level
Moisture<1ppm,Oxygen<1ppm
Main Valves
electro-pneumatic valves, PLC-controlled
Operation Panel
Touch panel 7, color

Circulation Blower
90 m³/h", frequency controlled
Heat Exchanger
water-cooled
Box Pressure Control
Automatic pressure control with foot switch(±15mbar)
Regeneration Gas
N2/H2 mix or Ar/H2 mix(H2 2-10%)
Working Gas
Nitrogen Argon or Helium
Function
Automatic control system pressure/purge state/automatic switching& circulation/regeneration/alarm function
System control parameter settings/condition monitoring/record
Option spare parts
Oxygen Sensor
Range 0-1000 ppm, has an accuracy of 0.1ppm
Moisture Sensor
Range 0-1000 ppm, has an accuracy of 0.1ppm
Vacuum Pump
8m3/h/ 4L/S Dual stage rotary type vacuum pump with oil mist filter
(Brand:Japan ULVAC)
Organic Solvent Absorber System
Filled up with 21L active carbon for removing solvents
Standard Glove Box

Acrylic Glove Box


Vacuum Glove Box


Openable Glove Box


Customized Glove Box

3D Printer Glove Box


Nanotechnology Glove Box


Super-Capacitor Glove Box


Laser welding Glove Box


Biological Glove Box


Lithium-ion battery Glove Box
