Lab Testing Chamber Chemistry Lab Equipment VGB-2 Glove Box

FOB Reference Price:Get Latest Price
$500.00 - $2,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Usage:
Compression Testing Machine Universal Testing Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
1adry
Model Number:
VGB-2
Power:
Electronic
Glove Box Material:
Plastic
Glove Box Plastic Type:
PVC
Glove Box Air Locker Chamber Size:
230 L x 230 W x 230 H mm
Glove Box Containment Chamber Size:
875 L x480 W x500 H mm
Glove Box Product Overall Size:
1150 L x 500 W x 500 H mm
Glove Box Net Weight:
21kg

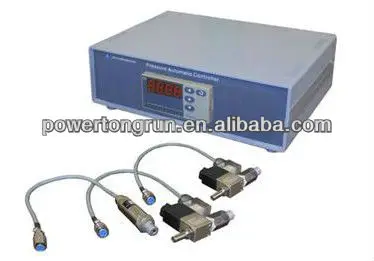

Glove Box Pressure Controller:
No
Glove Box Certificate:
ISO/CE/FCC/3C/ROHS
Glove Box Warranty:
1 Year
Glove Box Option:
1)Butyl gloves 2) Glove box port 3)Pressure Controller
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard
Port
Shanghai



 ACRYLIC GLOVE BOX





Application:

1. Glove box is used to isolate contamination-sensitive

materials in a controlled environment or to contain biohazards.                                                                                   2. Glove box is available in application-sensitive materials,

including chemical-resistant and static dissipative plastic.

Features:

« Benchtop transparent glove box offers larger inert gas environmental workspace with vacuum air locker and side door.

« The Glove box is made of transparent polycarbonate for clear viewing from any angle.

« Polycarbonate construction affords resistance to a wide range of chemicals, high-impact strength and scratch-resistance and the smooth, hemispherical interior cleans easily.



Specifications:

Model

WHC-2

(Standard)

WHC-2Y

Material

Plastic

Plastic Type

Acrylic

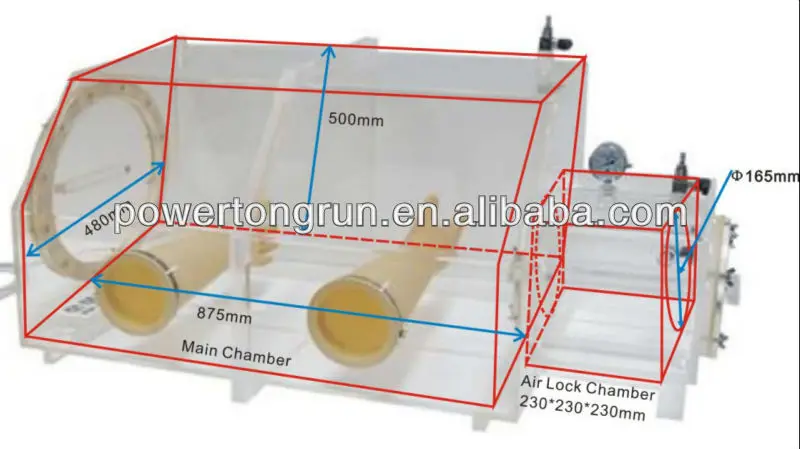

Air Locker Chamber Size

230 L x 230 W x 230 H mm

Containment Chamber Size

875 L x480 W x500 H mm

Product Overall Size

1150 L x 500 W x 500 H mm

Net Weight

21kg

25kg

Pressure Controller

No

Yes

Glove Box Gloves

Latex Glove (Standard)

Option

1) Butyl Gloves  2) Glovebox Port  3) Pressure Controller





Accessories for Glove Box Gloves

Specifications:



Items

Standard

Option

Material

Latex

Butyl Rubber

Model

GBG-1

GBG-2

GBG-3

GBG-4


Color

Oyster White

Oyster White

Black

Oyster White

Diameter (mm)

153

230

180

140

Length (mm)

560

800

800

800

Thickness (mm)

0.5

0.8

0.6

0.4

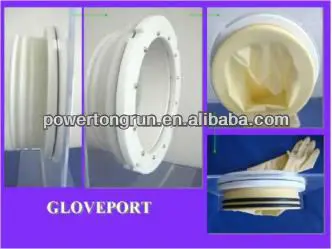

Accessories for Glovebox Port:

Specifications:



DiameterΦ196-197MM



Flange for one set includes:



White plastic inner ring with 2 pcs;

White plastic outer ring with 2 pcs;

Black rubber seal with 4 pcs;

Black rubber tension ring with 4 pcs





Accessories for Pump:



Specifications:





Model

Flow Rate (cfm)

Ultimate Vacuum

Power

(HP)

Rotating Speed

(r/min)

Inlet

Port

Oil

Capacity

(ml)

Dimensions

(mm)

Weight

(kg)

220V/

50Hz

110V/

60Hz

220V/

50Hz

110V/

60Hz

2TW-1.5C

3 CFM

90L/min

3.5 CFM

108L/min

5x10-1 Pa/

25Microns

1/3

1440

1720

1/4SAE

300

340*135*260

10









Noted:1. Custom made be accepted.

            2. Option:

           1) Butyl Gloves  2) Glovebox Port  3) Pressure Controller

           3. Accessories:

           Vacuum Pump ; Gloves; Power Line; Spanner; Vacuum Grease;Operation Manual
