Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: 1ADRY
  • Model Number: VGB-1 Glove box
  • Power: Electronic
  • Usage: specialty chemicals
  • Model: VGB-1 vacuum glove box
  • Material: 304 stainless steel
  • chamber size: 600W* 450D *420H (mm)
  • Positive pressure: Max: 1.1 atm
  • Leakage rate: < 3 torr/hour
  • Inert gases pressure maintain: > 12 hours
  • Shipping dimension: 45x45x37"
  • Shipping weight: 210 lbs
  • Certificate: ISO/CE/FCC/3C/ROHS
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details wooden box for Glovebox with Solvent Purification Systems to allow for research & development of microelectronic
Delivery Time Shipped in 5 days after payment

Glovebox with Solvent Purification Systems to allow for research & development of microelectronic

Introduce:

A glove box is a protection container to allow one operate researches in a inert atmosphere,such as argon or nitrogen.

As usual,glove box is pumped through a series of devices which remove water and oxygen from the gas.

Glove box is always used in lithium batteries,polymers,OLED research and development,semiconductors,catalyst,nanomaterials research and so on

Application:

The WHC-1  is a small size stainless steel glove box with chamber size of  22'x 17' x 16" and  Airlock Chamber, Gauges and vacuum Flange, which allows glove box go higher vacuum to remove moisture and oxygen and operate under negative pressure without expensive inert gas purging   It is a great choice for material and chemical research to handle air sensitive materials and solution at low cost.

moisture can be below 180 ppm and oxygen below 200 ppm.

Features



  • Made of 11 gauge ( 3 mm thickness ) 304 stainless steel sheet with sport frame , which provide heavy duty structure for high vacuum.
  • Two vacuum flanges are included and allow glove box go higher vacuum to remove moisture and oxygen and operate  under negative pressure without expensive inert gas purging
  • One KF-25 connector is installed in the back for connecting humidity monitor or other testing equipments





Specifications

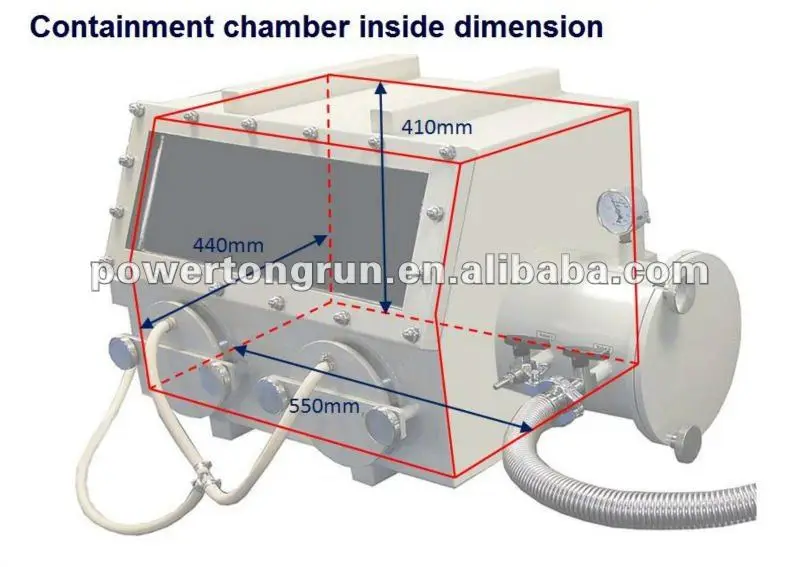

main chamber size: 22'x 17' x 16"





Vacuum pressure:In airlock chamber when close inside door: up to 0.05 Torr (0.067 mbar);
In side glove box when closing front flange: up to 0.5 Torr (0.67 mbar)
Note: The glove box is not designed for high vacuum. Stainless steel case may deform at higher vacuum




Positive pressure:
Max: 1.1 atm
Note: gloves cannot work if pressure is higher than 1.1 atm, 810 torrs

Leakage rate : < 6 torr/hour

Inert gases pressure maintain:> 12 hours

Shipping dimension:45x45x37"

Shipping weight: 210 lbs

Details:
